| Material: The channel nuts are cold pressed, tapped
so that their teeth will provide a "BITING" action into
the in turned edges of channel sections. The nut bodies
are designed with beveled end which lock into position
by contact with interior side walls of channel when
turned at 90 degree. |
| |
| AVAILABILITY OF MATERIALS
: |
| |
|
 |
The channel nuts are also
available in SS304 and SS316 grades in
bright finish |
|
|
Finishes available: |
| |
|
| |
> Zinc plated
> Yellow passivation
> Hot dip galvanized |
| |
|
|
| |
|
 |
| |
|
DS-12001 |
|

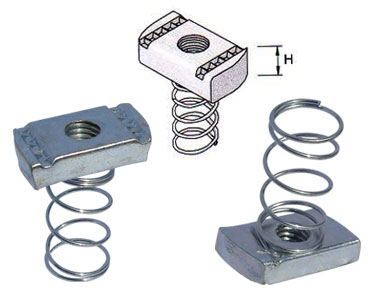

Long Spring
Channel Nuts |
|
Size MM X
(H) |
Size (INCH)
X (H) |
|
M6 X 6MM |
1/4" X
1/4" |
|
M8 X 6MM |
5/16" X
5/16" |
|
M10 X 8MM |
5/16" X
3/8" |
|
M12 X 8MM |
3/8" X
3/8" |
|
M12 X 10MM |
1/2" X
1/2" |
| |
5/8" to
7/8" X
3/8" |
| |
5/8" to
7/8" X
7/16" |
| |
5/8" to
7/8" X
1/2" |
| |
1/2" X
3/8" | |
|
|
| |
|
 |
| |
|
DS-12002 |
|

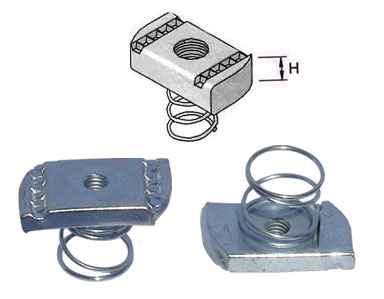

Short / Conical
Spring Channel Nuts |
|
Size (MM) X
(H) |
Size (inch)
X (H) |
|
M6 X 6MM |
1/4" X
1/4" |
|
M8 X 6MM |
5/16" X
5/16" |
|
M/10 X 8MM |
5/16" X
3/8" |
|
M12 X 8MM |
3/8" X
3/8" |
|
M12 X 10MM |
1/2" X
1/2" |
| |
1/2" X
3/8" | |
|
|
| |
| |
| |
|
 |
| |
|
DS-12003 |
|

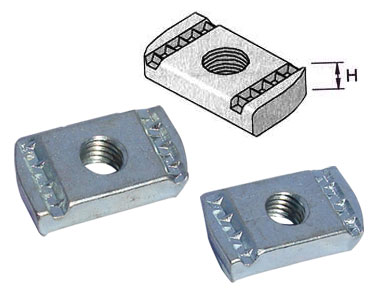

No Spring Channel
Nuts |
|
Size (MM) X
(H) |
Size (inch)
X (H) |
|
M6 X 6 MM |
1/4" X 1/4" |
|
M8 X 6MM |
5/16" X 5/16" |
|
M10 X 8MM |
5/16" X 3/8" |
|
M12 X 8MM |
3/8" X
3/8" |
| |
1/2" X
3/8" |
|
M12 X 10MM |
1/2" X
1/2" |
|
M16 X 12MM |
5/8" to
7/8" X
3/8" |
| |
5/8" to
7/8" X
7/16" |
| |
5/8" to
7/8" X
1/2" | |
|
|
| |
|
 |
| |
|
DS-12004 |
|

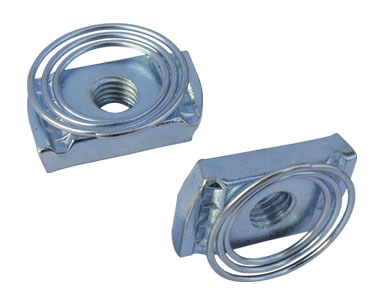

Top Spring
Channel Nuts |
|
Size (MM) X
(H) |
Size (INCH)
X (H) |
|
M6 X 6MM |
1/4" X
1/4" |
|
M8 X 6MM |
5/16 X
5/16" |
|
M10 X 8MM |
5/16" X
3/8" |
|
M12 X 8MM |
3/8" X
3/8" |
|
M12 X 10MM |
1/2" X
1/2" |
|
|
1/2" X
3/8" | |
|
|
| |
| |
| |
|
|
|
| |
|
| |
|
|
|
